CASE 04

Ref. CASE 04

Cabinet to contain auxiliary equipment for fire hydrants.
For external ground mounting.
Vertical configuration.
Body and column support independents.
Made of fiberglass.
General Finishing: Polyester paint RAL 3000.
Surface door finishing: Polyester paint RAL 9010.
Lock with hidden handle.
Stainless steel hinges.
For an optimal installation, it is recommended to fill the column with concrete.
High resistance to weathering.

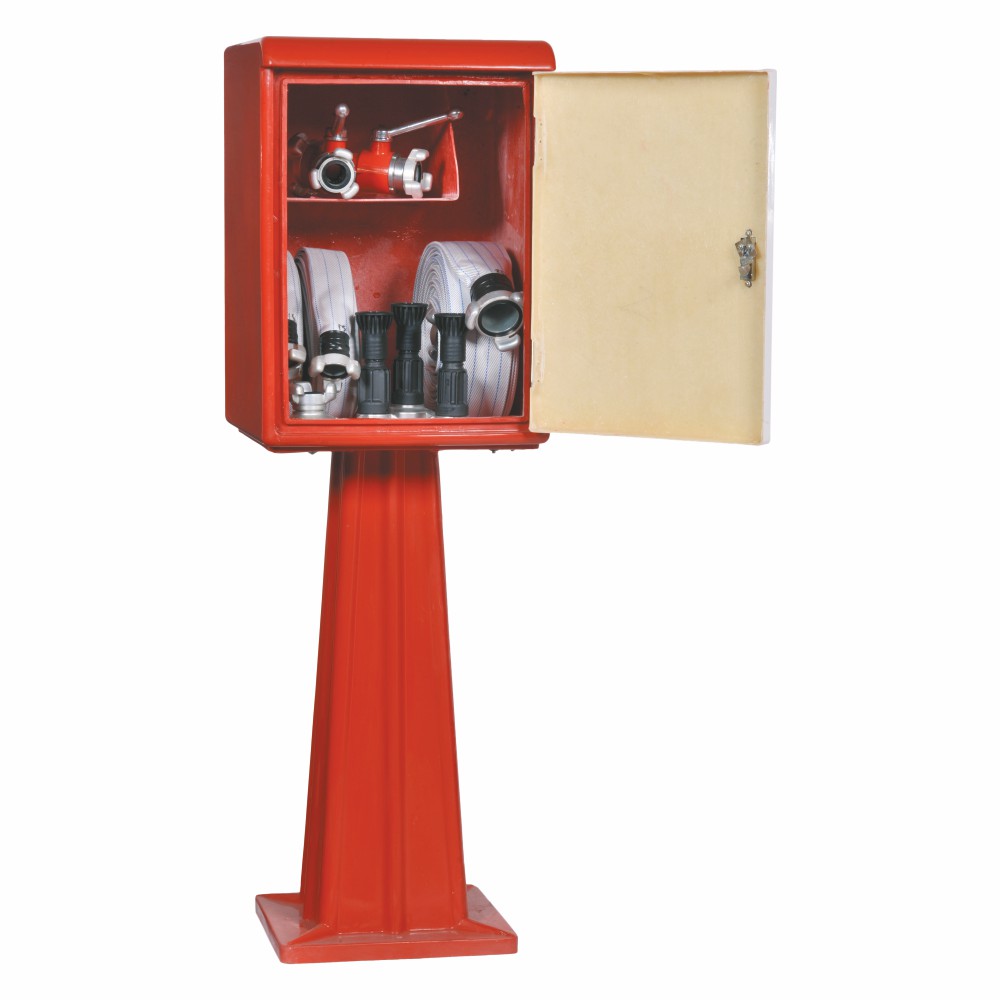

CASE 04-B

Outdoor cabinet Mod. CASE 04 con auxiliary equipment Ref. DOT-1.

Auxiliary hydrants equipment features Ref. DOT-1.

1 synthetic hose Ø 70 mm and 15 m length, with Barcelona couplings (*) made of stamped aluminum.
2 synthetic hoses Ø 45 mm and 15 m length, with Barcelona couplings (*) made of stamped aluminum.
1 bifurcation pipe of Ø 45 mm. without caps, with Barcelona couplings (*) made of stamped aluminum.
1 Barcelona coupling (*) external thread Ø 70 mm. stamped aluminum.
2 Triplex nozzles with triple effect. With Barcelona coupling (*) Ø 45 mm. stamped aluminum.
1 Triplex nozzle with triple effect. With Barcelona coupling (*) Ø 70 mm. stamped aluminum.
1 Barcelona reduction pipe Ø 70 x 45 mm. stamped aluminum.

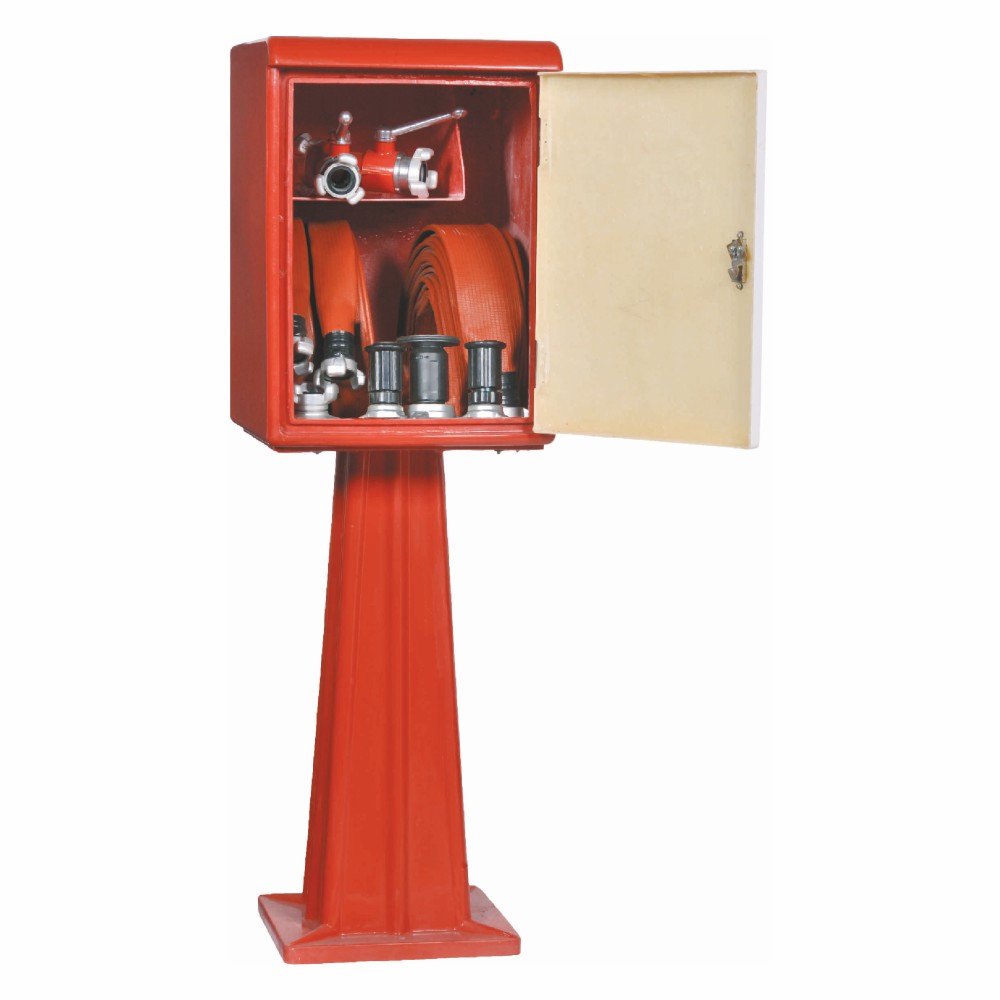

 CASE 04-R

Outdoor cabinet Mod. CASE 04 con auxiliary equipment Ref. DOT-2.

Auxiliary hydrants equipment features Ref. DOT-2.

1 ARMTEX® (*) rubber hose Ø 70 mm and 15 m length. With Barcelona stamped aluminum couplings (*).
2 ARMTEX® (*) rubber hoses Ø 45 mm and 15 m length. With Barcelona stamped aluminum couplings (*).
1 bifurcation pipe of Ø 45 mm. without lids, with Barcelona couplings (*) made of stamped aluminum.
1 Barcelona coupling (*) external thread Ø 70 mm. stamped aluminum.
2 Triplex50 nozzles with triple effect. With Barcelona coupling (*) Ø 45 mm. stamped aluminum.
1 Triplex80 nozzle with triple effect. With Barcelona coupling (*) Ø 70 mm. stamped aluminum.
1 Barcelona reduction pipe Ø 70 x 45 mm. stamped aluminum.

 CASE 04-B2

Outdoor cabinet Mod. CASE 04 con auxiliary equipment Ref. DOT-3.

Auxiliary hydrants equipment features Ref. DOT-3.

1 synthetic hose Ø 70 mm and 15 m length, with Barcelona couplings (*) made of stamped aluminum.
2 synthetic hoses Ø 45 mm and 15 m length, with Barcelona couplings (*) made of stamped aluminum.
1 bifurcation pipe of Ø 45 mm. without caps, with Barcelona couplings (*) made of stamped aluminum.
1 Barcelona coupling (*) external thread Ø 70 mm. stamped aluminum.
2 Triplex50 nozzles with triple effect. With Barcelona coupling (*) Ø 45 mm. stamped aluminum.
1 Triplex80 nozzle with triple effect. With Barcelona coupling (*) Ø 70 mm. stamped aluminum.
1 Barcelona reduction pipe Ø 70 x 45 mm. stamped aluminum.

 CASE 04-R2

Outdoor cabinet Mod. CASE 04 con auxiliary equipment Ref. DOT-4.

Auxiliary hydrants equipment features Ref. DOT-4.

1 ARMTEX® (*) rubber hose Ø 70 mm and 15 m length. With Barcelona stamped aluminum couplings (*).
2 ARMTEX® (*) rubber hoses Ø 45 mm and 15 m length. With Barcelona stamped aluminum couplings (*).
1 bifurcation pipe of Ø 45 mm. without lids, with Barcelona couplings (*) made of stamped aluminum.
1 Barcelona coupling (*) external thread Ø 70 mm. stamped aluminum.
2 LR45U nozzles with triple effect. With Barcelona coupling (*) Ø 45 mm. stamped aluminum.
1 LR70U nozzle with triple effect. With Barcelona coupling (*) Ø 70 mm. stamped aluminum.
1 Barcelona reduction pipe Ø 70 x 45 mm. stamped aluminum.

 (*) Certified by AENOR, according to UNE 23400
 (*) Certified by AENOR, according to UNE 23091

NOTE: OTHER DIMENSIONS, FINISHES AND EQUIPMENT - CONSULT
