ENOX 1 LS

Ref. BIE25EACINOX1LS

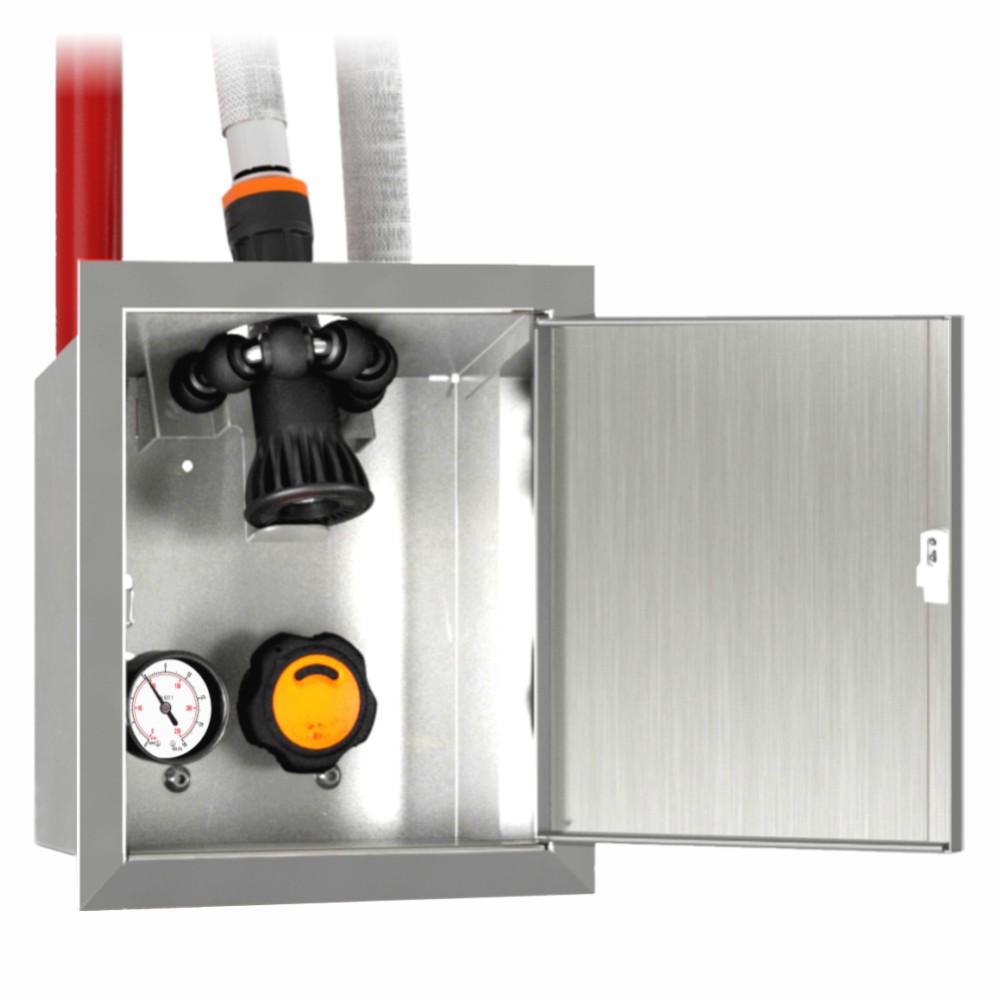

Vertical configuration cabinet.
Connection to reel in a separate module.
Nozzle TOP inlet to the cabinet body.
Cabinet consists of recessed cabinet body and removable front flat frame.
Recessed format. Access to nozzle, pressure gauge and valve.
Connection to reel in a separate module.
Body measures Height = 268, Width = 230, D = 115 mm.
Removable front dimensions Height = 310, Width = 274 mm.
Body made of unpainted galvanized sheet steel.
Recessed door with Multiblend format.
Door made of brushed stainless steel AISI 304.
Flat Casing Frame made of polished Stainless Steel AISI 304.
Push opening system.
ROTEX System to power the BIE.
Fixed Eacisystem reel with axial supply.
Thermoplastic copolymer hose reel Ø 490 mm according to ISO 4892-2. (*)
Triplex nozzle with triple effect. Female thread 1" (Ø 10 mm.).
Guiman system for orientation and slip hose.
20 m. semi-rigid hose Ø 25 mm. EN-694.
Elbow-pipe for quick hose replacement.
Ball Valve 1" chrome plated brass.
Plastic valve knob with planetary reduction drive.
Gauge scale from 0 to 16 kg/cm2. Thread 1/4".
Shut-off valve for pressure gauge chrome plated brass. Thread 1/4".
(*) UV Resistance exposure to Xenon arc light sources
