MASTER 2R / MASTER 2RT45

Ref. BIE25MASTER2R / BIE25MASTER2RT45

Cabinet horizontal configurations.
With Department for fire extinguisher.
Dimensions Height = 710 Width = 805, D = 245 mm.
Made of sheet steel.
Door finishing: RAL 3000 polyester paint.
Embedded doors. Provided with Polystyrene viewer in BIE side.
Thermoplastic slip locks.
Security seals and key maintenance included.
Espiroflex system (Anti-constriction) for fire hose supply.
Fixed Eacisystem reel with axial supply.
Thermoplastic copolymer hose reel according to ISO 4892-2 (*)
ROTEX System to power the B.I.E.
7 Possible supply inputs.
Triplex nozzle with triple effect. Female thread 1" (Ø 10 mm.).
Guiman system for orientation and slip hose.
20 m. semi-rigid hose Ø 25 mm. EN-694.
Elbow-pipette for quick hose replacement.
Ball Valve 1" chrome plated brass.
Plastic valve knob with planetary reduction drive.
Gauge scale from 0 to 16 kg/cm2. Thread 1/4".
Shut-off valve for pressure gauge chrome plated brass. Thread 1/4".
Ability to install additional outlet. (Model MASTER 2RT45)
(*) Resistance exposure to UV light sources Xenon arc

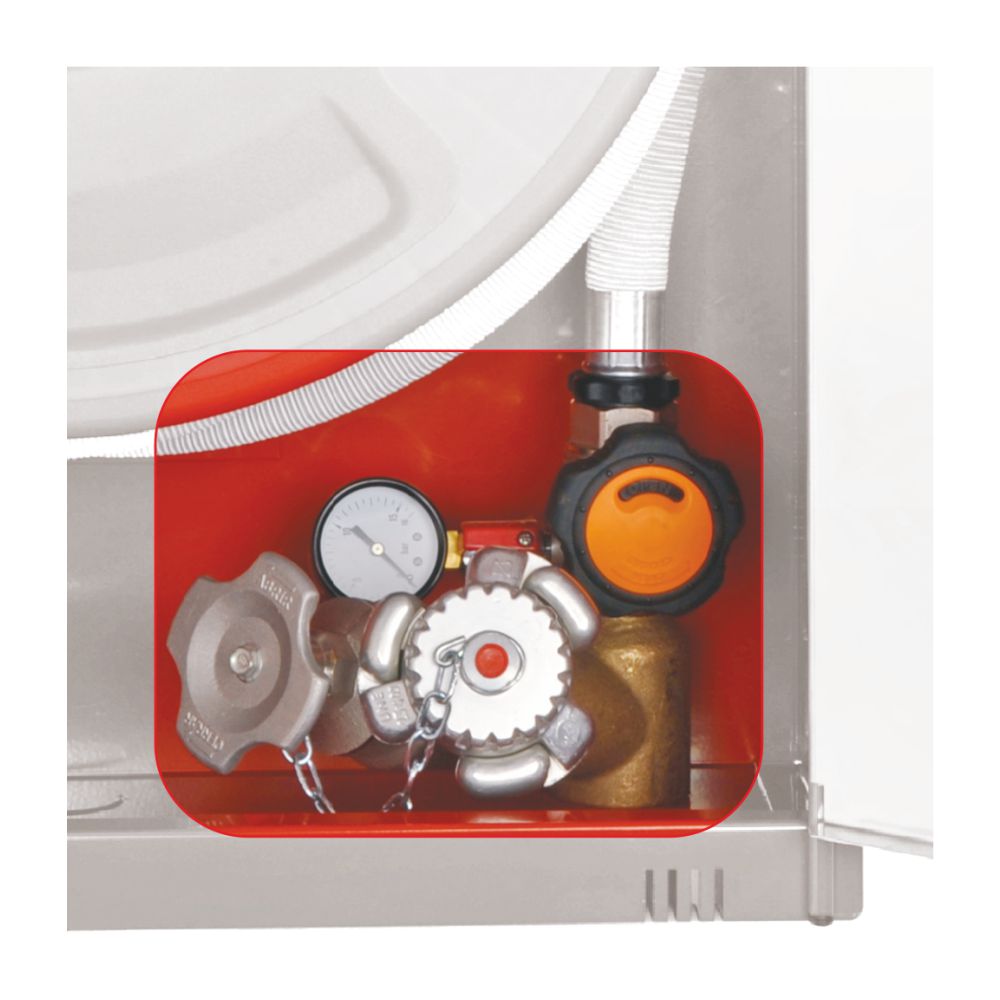

ADDITIONAL OUTLET CONNECTION for Model MASTER 2RT45
Take additional 45 mm. Brass Ref TAD
Chromed brass seat valve. Ref V45LU, with vulcanized closing.
Barcelona Ref RE45U Racor (Certified by AENOR, according to UNE 23 400)
Barcelona Cap DN 45 mm. Ref T45U (Certified by AENOR, according to UNE 23 400)
