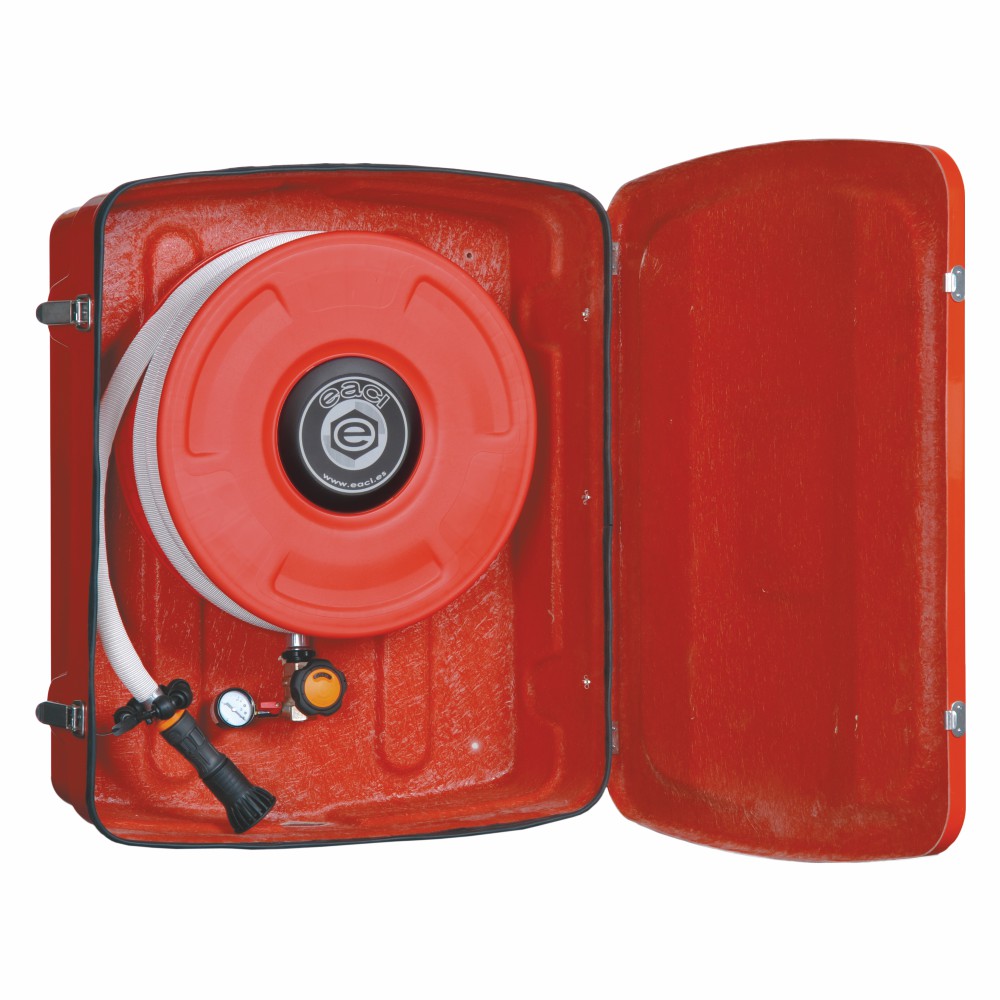

GLASSFIBER / GLASSFIBER T45

Ref. BIE25GLASSFIBER / BIE25GLASSFIBERT45

Vertical cabinet configuration.
Dimensions Height = 810, width = 650, D = 250 mm.
Made of fiberglass. Polyester painted with Ral-3000.
Surface door.
Toggle latches made of stainless steel AISI 316.
Fixed Eacisystem reel with axial supply.
Thermoplastic copolymer hose reel according to ISO 4892-2 (*)
Supply inputs depending on installation requirements.
Triplex nozzle with triple effect. Female thread 1" (Ø 10 mm.).
Guiman system for orientation and slip hose.
20 m. semi-rigid hose Ø 25 mm. EN-694.
Elbow-pipette for quick hose replacement.
Ball Valve 1 "chrome plated brass.
Plastic valve knob with planetary reduction drive.
Gauge scale from 0 to 16 kg/cm2. Thread 1/4".
Shut-off valve for pressure gauge chrome plated brass. Thread 1/4".
Special outdoor use.

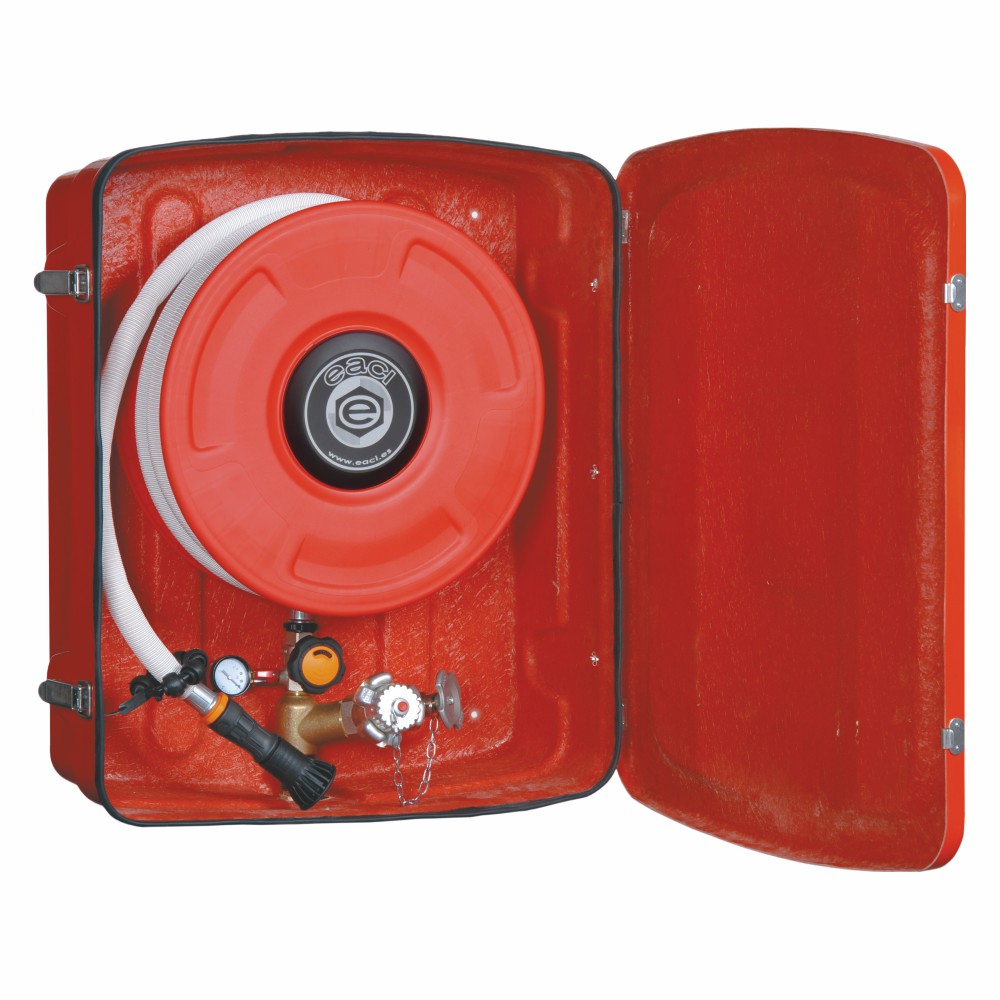

Ability to install additional outlet. (Model GLASSFIBER T45)
(*) UV Resistance exposure to Xenon arc light sources

ADDITIONAL OUTLET CONNECTION for Model GLASSFIBER T45
Additional 45 mm outlet brass connection. Ref TAD
Chromed brass seat valve. Ref V45LU, with vulcanized closing.
Barcelona coupling. Ref RE45U (Certified by AENOR, according to UNE 23 400)
Barcelona Cap DN 45 mm. Ref T45U (Certified by AENOR, according to UNE 23 400)
