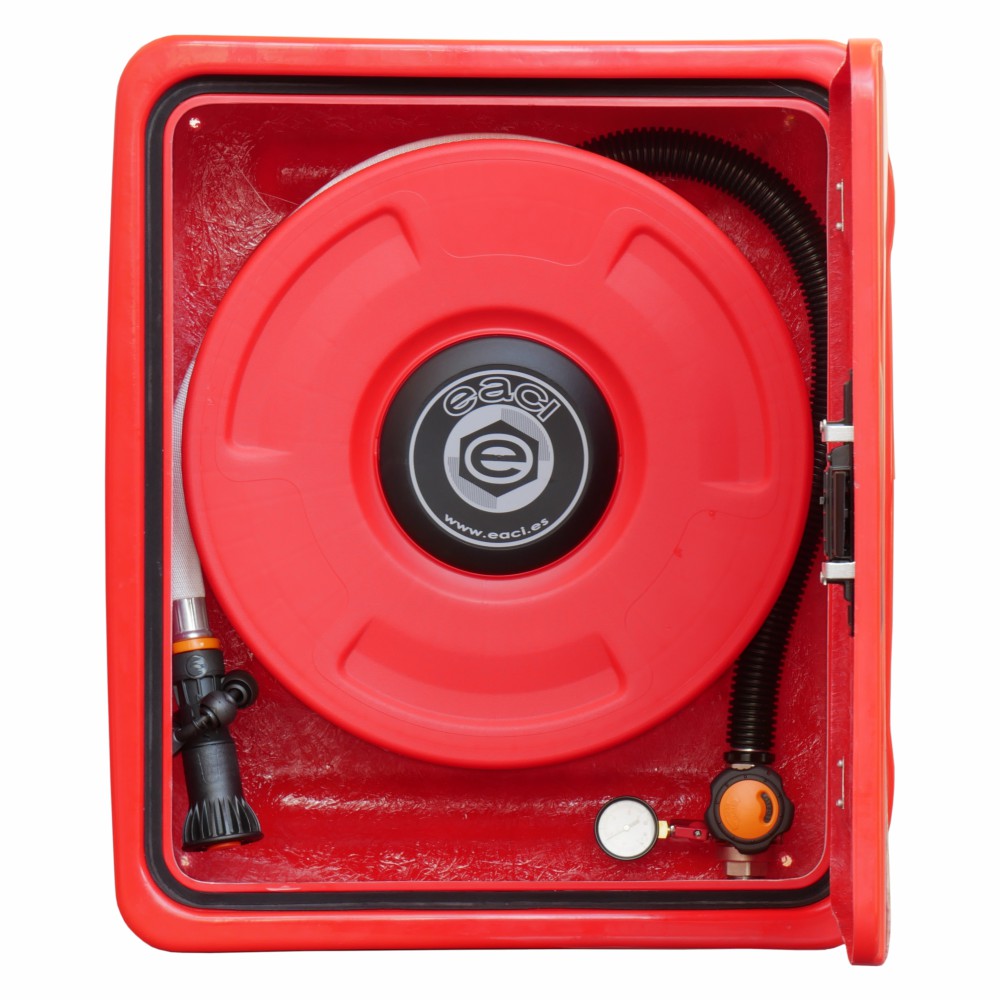

WINGER / WINGER T45

Ref. BIE25WINGER / BIE25WINGERT45

Vertical cabinet configuration.
Dimensions Height= 718, width =625, D= 284mm.
Made of fiberglass. Polyester painted with RAL 3000.
CONTACT for other color possibilites.
Recessed door "BLIND".
Special outdoor use.
Ruberend sealing joint on closing perimeter.
Reversible closing model Glide with security seal.
Hinges made of Zinc, opening up to 180º, finishing Polyester paint.
Espiroflex system (Anti-constriction) for fire hose supply.
Fixed Eacisystem reel with axial supply.
Thermoplastic copolymer hose reel according to ISO 4892-2 (*)
Triplex nozzle with triple effect. Female thread 1" (Ø 10 mm.).
Guiman system for orientation and slip hose.
20 m. semi-rigid hose Ø 25 mm. EN-694.
Elbow-pipette for quick hose replacement.
Ball Valve 1" chrome plated brass.
Plastic valve knob with planetary reduction drive.
Gauge scale from 0 to 16 kg/cm2. Thread 1/4".
Shut-off valve for pressure gauge chrome plated brass. Thread 1/4".
Ability to install additional outlet. (Model WINGER T45)
(*) UV Resistance exposure to Xenon arc light sources

ADDITIONAL OUTLET CONNECTION for Model WINGER T45
Additional 45 mm outlet brass connection. Ref TA-45
Chromed brass seat valve. Ref V45LU, with vulcanized closing.
Barcelona coupling. Ref RE45U (Certified by AENOR, according to UNE 23 400)
Barcelona Cap DN 45 mm. Ref T45U (Certified by AENOR, according to UNE 23 400)
