SA2 / SA2T45

Ref. BIE25SA2/BIE25SA2T45

Device without cabinet body.
Fixed Eacisystem reel with axial supply.
Thermoplastic copolymer hose reel Ø 490mm according to ISO 4892-2. (*)
Triplex nozzle with triple effect. Female thread 1" (Ø 10 mm.).
Guiman system for orientation and slip hose.
20 m. semi-rigid hose Ø 25 mm. EN-694.
Elbow-pipe for quick hose replacement.
Ball Valve 1" chrome plated brass.
Plastic valve knob with planetary reduction drive.
Gauge scale from 0 to 16 kg/cm2. Thread 1/4".
Shut-off valve for pressure gauge chrome plated brass. Thread 1/4".
Ability to install additional outlet. (Model SA 2T45)
(*) UV Resistance exposure to Xenon arc light sources

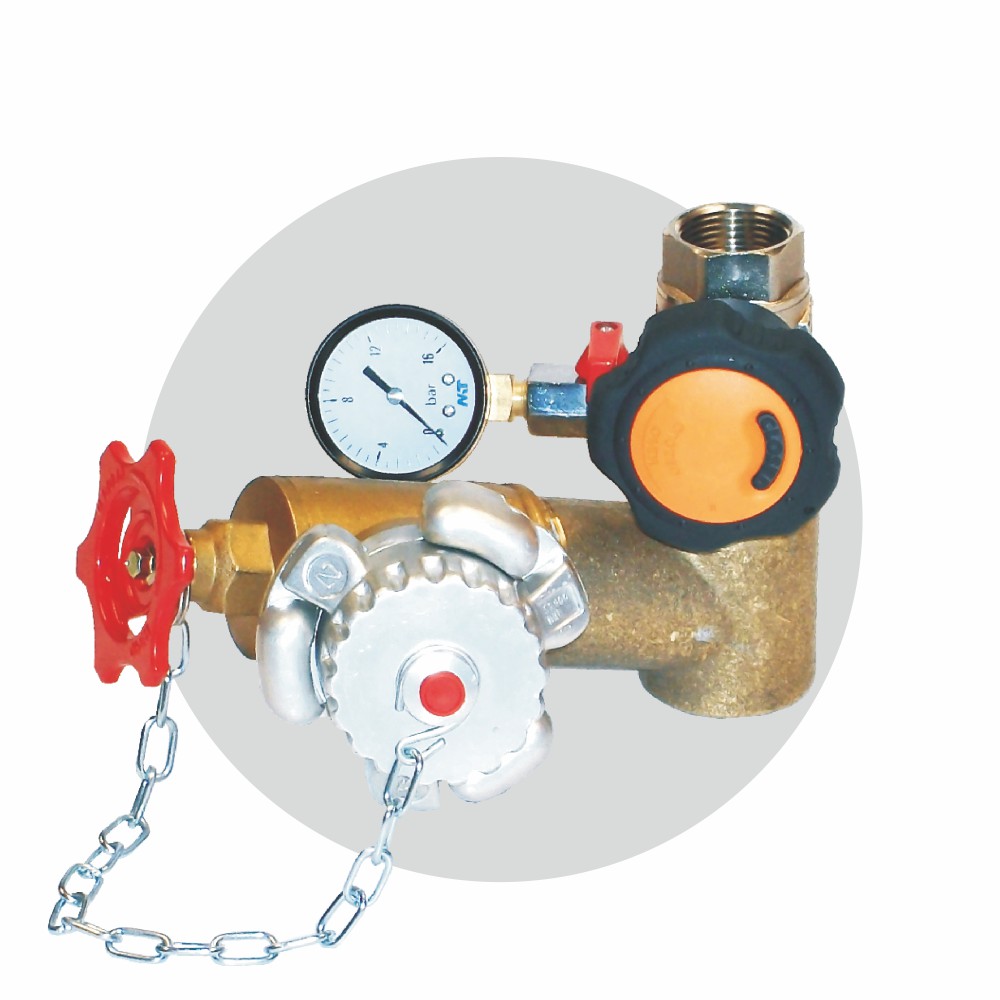

ADDITIONAL OUTLET CONNECTION for Model SA 2T45
Additional 45 mm outlet brass connection. Ref TAD
Brass seat valve. Ref V45L90U
Barcelona coupling. Ref RE45U (Certified by AENOR, according to UNE 23 400)
Barcelona Cap DN 45 mm. Ref T45U (Certified by AENOR, according to UNE 23 400)
