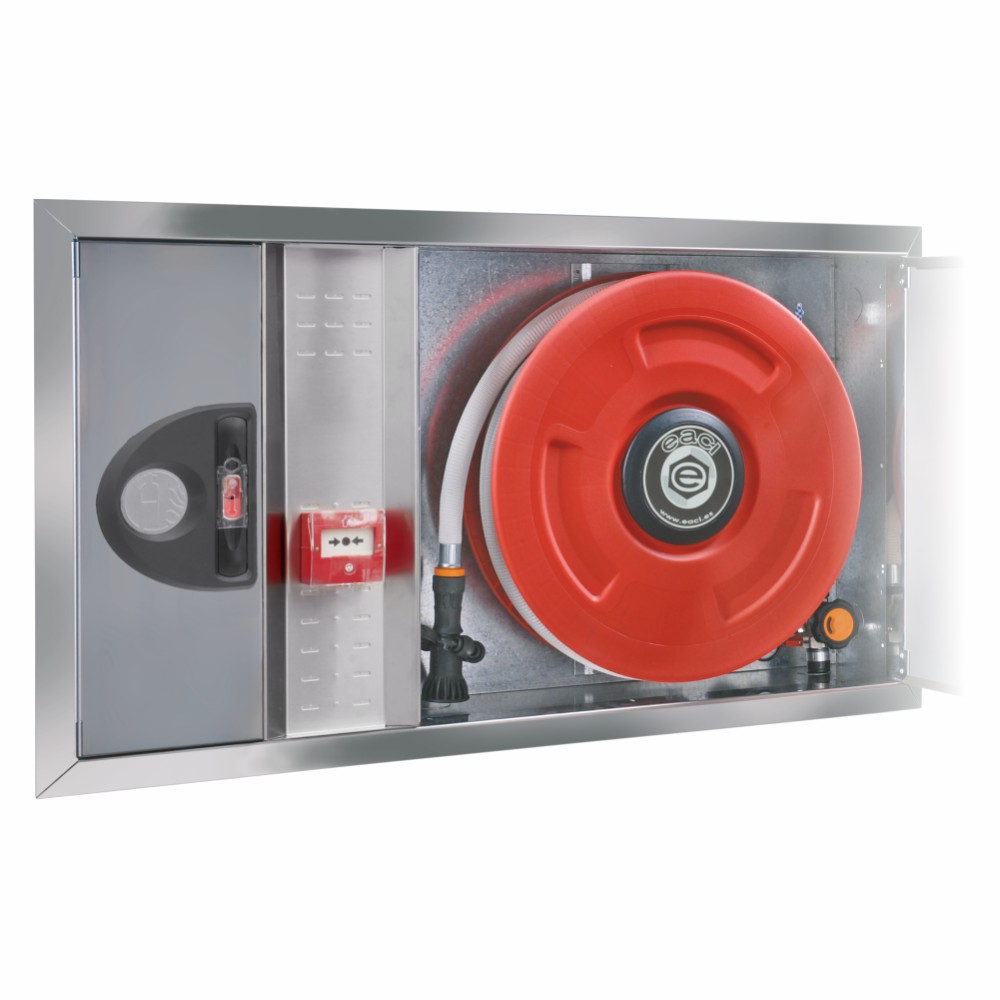

NARROW 3i

Ref. BIE25NARROW3i

Horizontal configuration, reversible format.
Cabinet consists of 2 independent bodies.
Embedded body and removable beveled front frame.
With extinguisher and registration department for technical module.
Technical module punching as detection elements.
Cabinet size Height = 610, width = 1105, D = 160 mm.
Dimensions front frame Height = 695, width = 1190, D = 30 mm.
Removable front frame made of Stainless Steel AISI 304. Bright finishing.
Door "blind" made of brushed stainless steel AISI 304.
Cabinet body made of galvanized sheet steel unpainted.
Thermoplastic paddle latch.
Security seals and key maintenance free.
Espiroflex system (Anti-constriction) for fire hose supply.
Eacisystem fixed brass reel with axial feed.
Thermoplastic copolymer hose reel according to ISO 4892-2. (*)
ROTEX System to power the B.I.E.
8 Possible supply inputs.
Triplex nozzle with triple effect. Female thread 1" (Ø 10 mm.).
Guiman system for orientation and slip hose.
20 m. semi-rigid hose Ø 25 mm. EN-694.
Elbow-pipe for quick hose replacement.
Ball Valve 1" chrome plated brass.
Plastic valve knob with planetary reduction drive.
Gauge scale from 0 to 16 kg/cm2. Thread 1/4".
Shut-off valve for pressure gauge chrome plated brass. Thread 1/4".
(*) UV Resistance exposure to Xenon arc light sources
