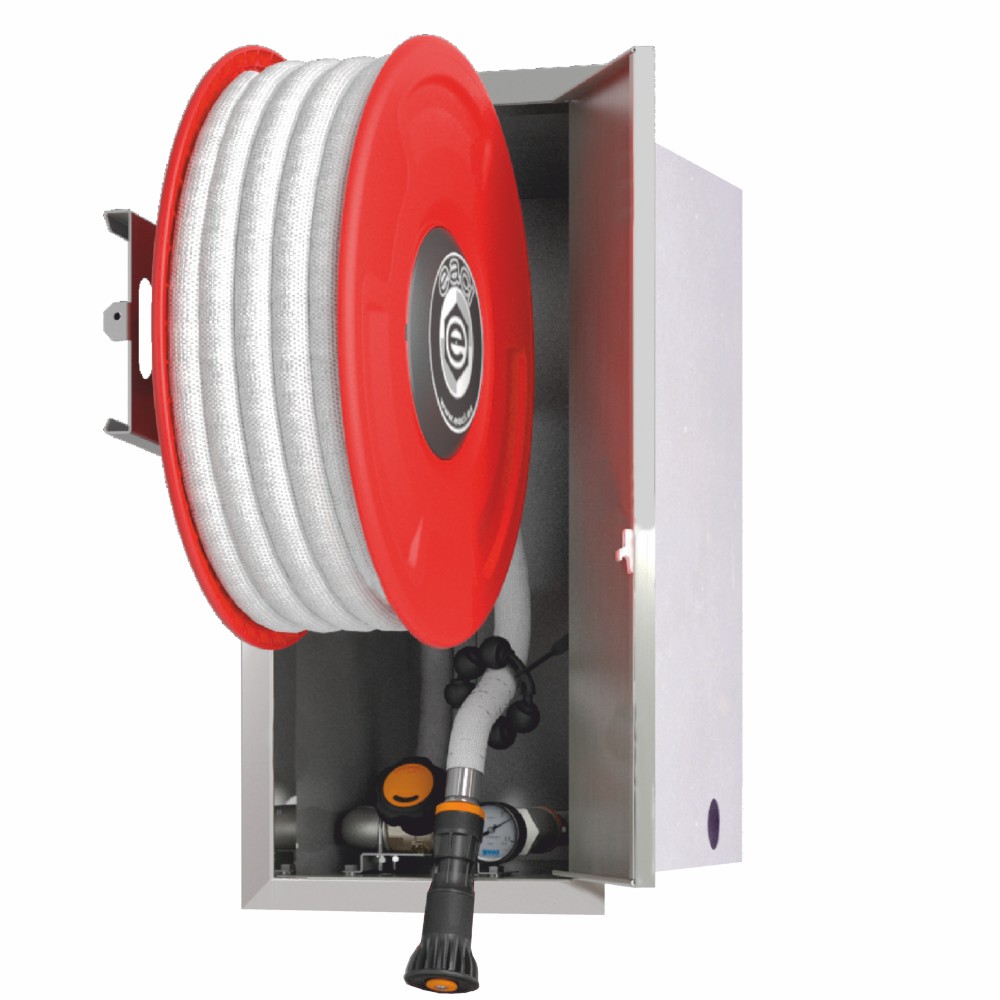

SLENDER 1

Ref. BIE25SLENDER

Vertical cabinet configuration.
Cabinet consisting of 2 independent bodies.
Recessed cabinet body and removable front flat frame.
Body measures Height = 675, Width = 280, D = 610 mm.
Removable front dimensions Height = 728, width = 333 mm.
Body made of unpainted galvanized sheet steel.
Recessed door with Multiblend format.
Door made of brushed stainless steel AISI 304.
Flat Casing Frame made of polished Stainless Steel AISI 304.
Push opening system.
Access, mounting and maintenance to the hose reel through telescopic rail system.
Espiroflex system (Anti-constriction) for fire hose supply.
Fixed Eacisystem reel with axial supply.
Ø 490 mm thermoplastic copolymer hose reel, according to ISO 4892-2 (*)
Triplex nozzle with triple effect. Female thread 1" (Ø 10 mm.).
Guiman system for orientation and slip hose.
20 m. semi-rigid hose Ø 25 mm. IN-694.
Elbow-pipe for quick hose replacement.
Ball Valve 1" chrome plated brass.
Plastic valve knob with planetary reduction drive.
Gauge scale from 0 to 16 kg/cm2. Thread 1/4".
Shut-off valve for pressure gauge chrome plated brass. Thread 1/4".
(*) UV Resistance exposure to Xenon arc light sources
