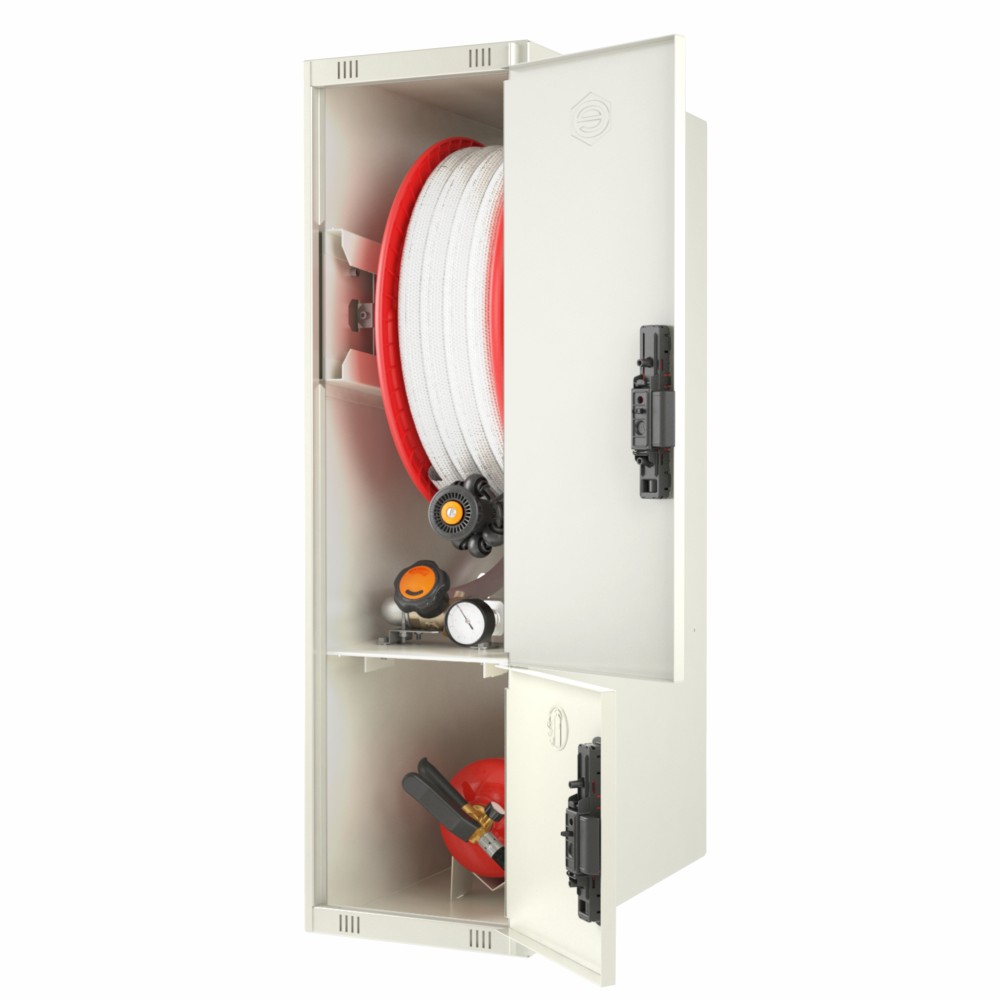

SLENDER S2 (Surface)

Ref. BIE25SLENDERS2

Vertical cabinet configuration.
With department for extinguisher.
Dimensions Height = 1040, Width = 295, D = 615 mm.
Made of sheet steel. Painted with polyester RAL 3000.
Optional color RAL 9010.
Recessed doors made of sheet steel.
Reversible closings model Glide with security seal.

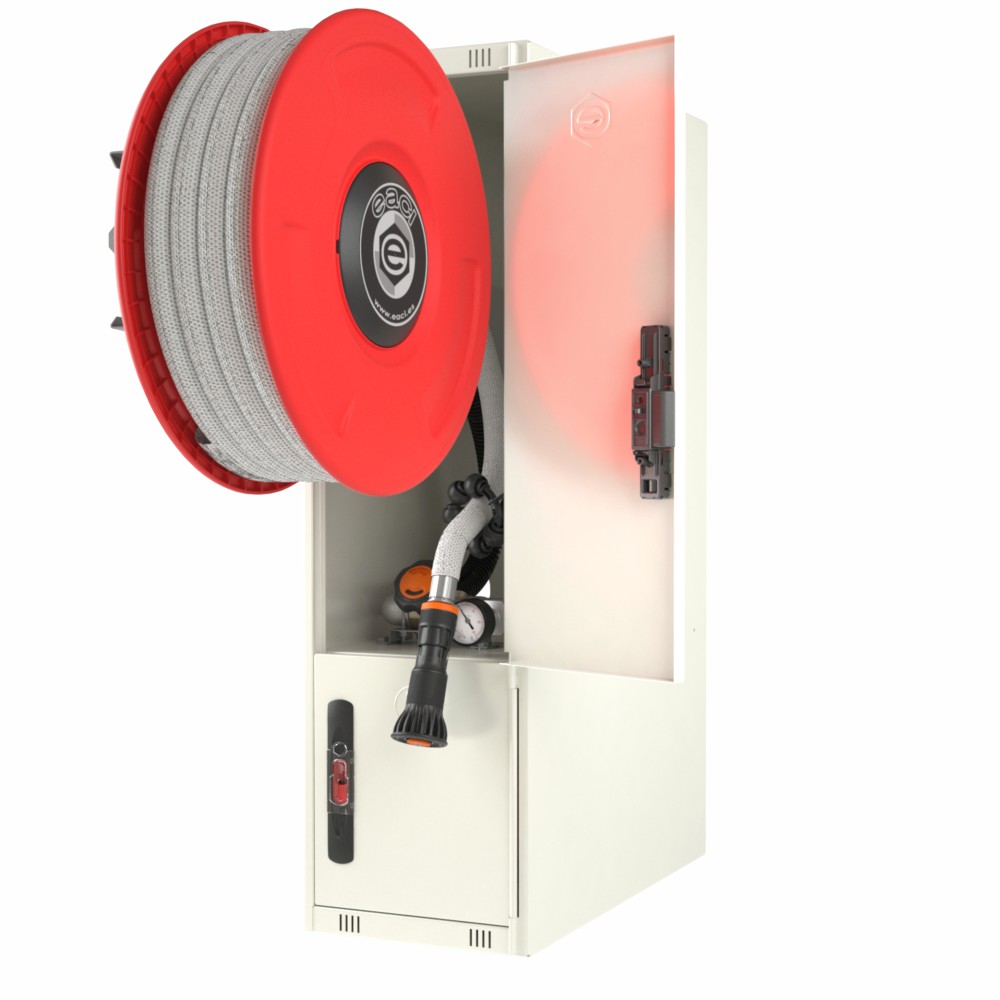

Access, mounting and hose reel maintenance through telescopic rail system.
Espiroflex system (Anti-constriction) for fire hose supply.
Fixed Eacisystem reel with axial supply.
Thermoplastic copolymer hose reel Ø 490 mm. According to ISO 4892-2 (*).
Triplex nozzle with triple effect. Female thread 1" (Ø 10 mm.).
Guiman system for orientation and slip hose.
20 m. semi-rigid hose Ø 25 mm. IN-694.
Elbow-pipe for quick hose replacement.
Ball Valve 1" chrome plated brass.
Plastic valve knob with planetary reduction drive.
Gauge scale from 0 to 16 kg/cm2. Thread 1 / 4 ".
Shut-off valve for pressure gauge chrome plated brass. Thread 1 / 4 ".
(*) UV Resistance exposure to Xenon arc light sources
